Product detail

Features

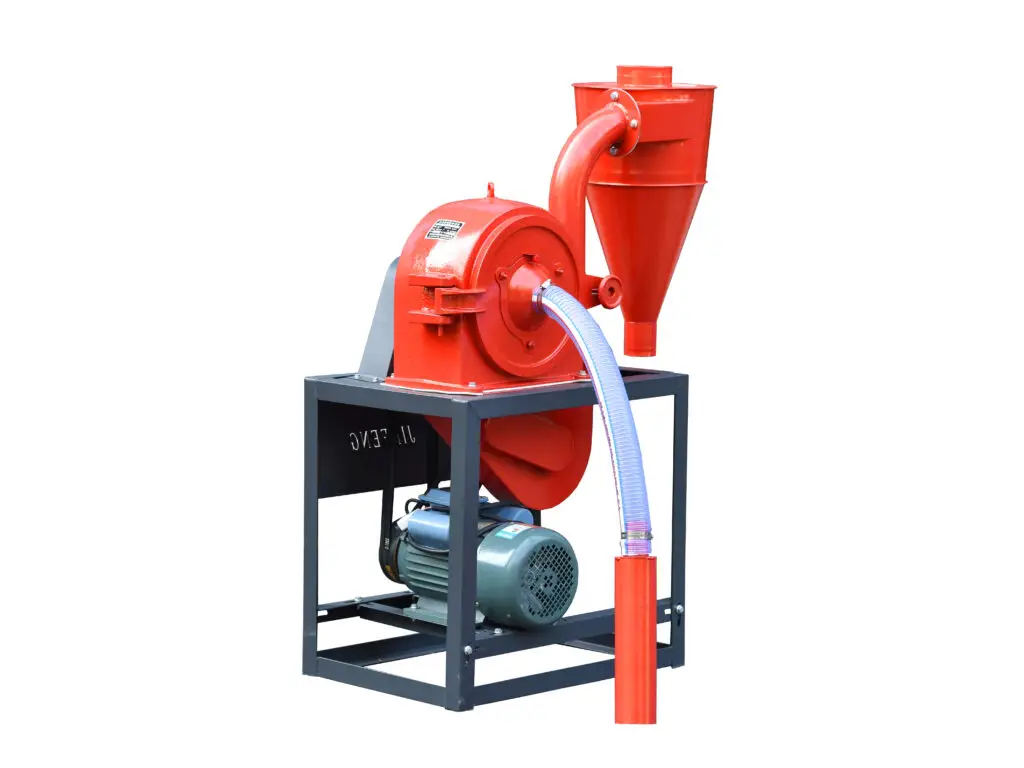

This series of self-suction type grinding machine is an agricultural grinding equipment that automatically sucks in raw materials by its own wind pressure without manual feeding, then crushes grains, corn, straw and feed ingredients into fine particles for breeding and processing.

The material is sucked into the crushing chamber for processing through the negative pressure generated by the body. The finished powder is collected and bagged through a cyclone powder collection cylinder, effectively reducing dust flying, improving work efficiency, reducing labor intensity, and having the advantages of convenient use, safety, and reliability.

Specifications

Model	Unit	9FZ-21-10	9FZ-23-10	9FZ-23-17
Spindle Speed	r/min	5200	4550	4550
Production Efficiency	kg/h	≥330	≥280	≥500
Weight	kg	47(w/o motor)	55(w/o motor)	58(w/o motor)
Package size	mm	380*325*375 640*400*530	575*395*526	640*458*600
Dimension	mm	1000*520*1080	950*530*1080	950*600*1180
Motor power	kw	3kw	3kw	3kw
Motor speed	r/min	2800	2800	2800
